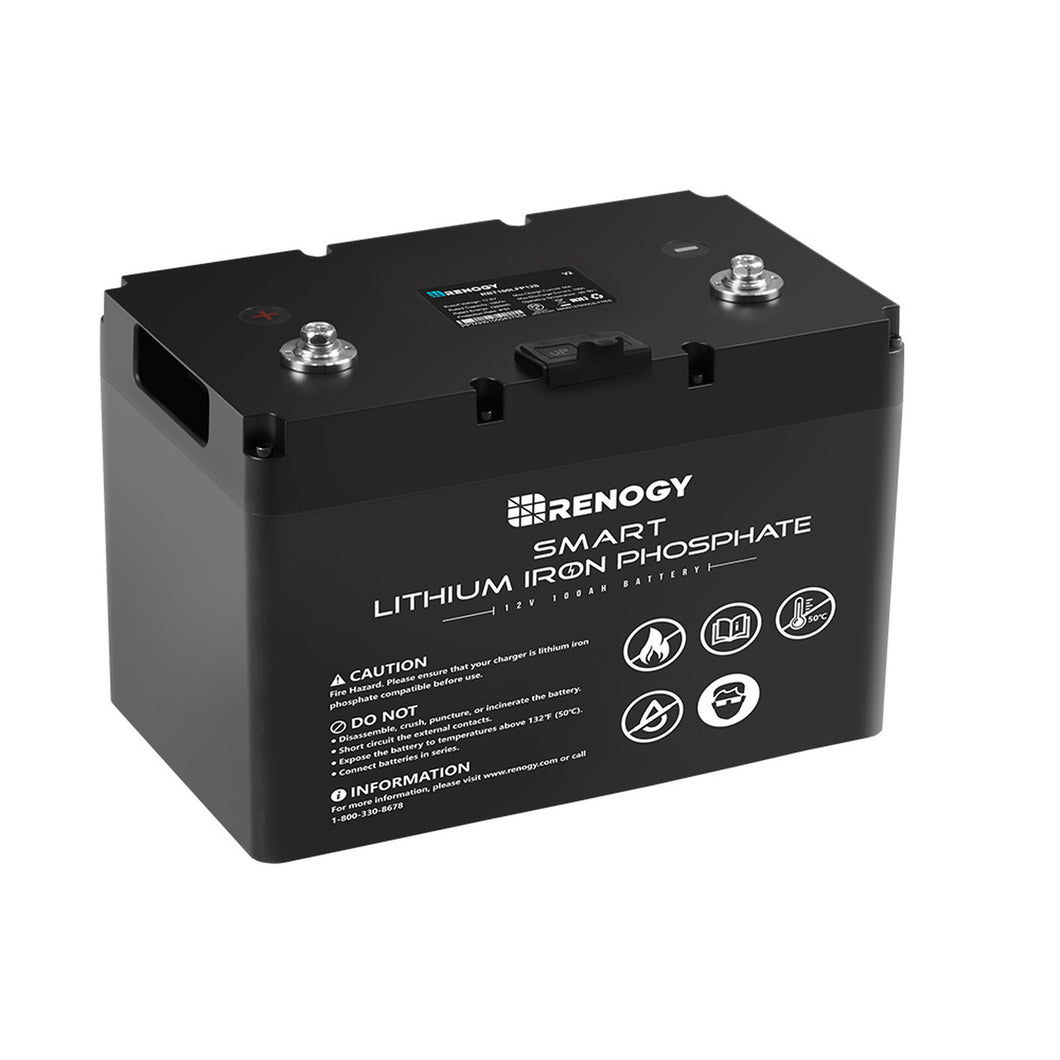

12V 100Ah Smart Lithium Iron Phosphate Battery
Activation switch and bolts
|RENOGY 12V 100AH SMART LITHIUM IRON PHOSPHATE BATTERY|
|Operation Specifications||Mechanical Specifications|
|Rated Capacity||100 Ah||Dimensions||11.4 x 6.8 x 7.4 inch / 289 x 172 x 187.5 mm|
|Nominal Voltage||12.8 V||Weight||26 lbs. / 11.8 kg|
|Voltage Range||10~14.8 V||Charge Temperature||32~131°F/ 0~55°C|
|Cycle Life(0.2C,25℃)||80%DOD 4000 Cycles||Discharge Temperature||-4~140°F/ -20~60°C|
|Maximum Continuous Charging Current||50 A||Protection Rate||IP54|
|Maximum Continuous Discharging Current||100 A||Communication Port||RJ45 (RS485 Protocol)|
|Dischaging Voltage Range||10V~14.4V||Insulation Resistance||500V DC, ≥ 10 MΩ|
|Standard Operation Temperature||25℃±5℃||Certifications|
|Storage Temperature||-13~149℉ / -25~65℃||UN38.3||YES|
|Accessories||UL 1642(Lithium Cell)||YES|
|Activation switch||*1||5-years Prorated Warranty|
Renogy 12V 100Ah Smart Lithium Iron Phosphate Battery The Renogy Smart Lithium Iron Phosphate Battery enables auto-balance among parallel connections and provides more flexibility for battery connection. The integrated smart battery management system (BMS) not only protects the 12V 100Ah LiFePO4 battery from various abnormalities but also monitors and manages the charging/discharging process. The state-of-the-art battery cells ensure a long cycle life and exceptional discharge performance. If you’re searching for a deep cycle battery for caravan, cabin, or marine use, this lightweight, auto-balanced, ultra-safe, long-cycle-life lithium-ion battery is the perfect solution for you!
Renogy LiFePO4 battery has a minimum 4000 cycles time which delivers up to 8 times longer than a lead-acid battery. Moreover, with the incredible energy density of the battery, Renogy LiFePO4 battery is thin and light with immense power.
There’s no reason to settle for other batteries if you can think 'Big Picture'.
Powered by an upgraded intelligent BMS circuit, the battery will guarantee balance between each battery cell group，and features the most preceise temperature measurement discrepancy of its kind. This battery will more accuratlet display and protect the battery from over-voltage, under-voltage, over-current, short circuit, high temperature, and low temperature.
Regardless of the production, use, or scrap, it does not contain or produce any toxic and harmful heavy metal elements and substances such as lead, mercury, and cadmium. Renogy 100ah LiFePO4 battery is made from 100% safe, nontoxic, and renewable energy.
The battery can be switched between active mode and shelf mode with the Activation Switch. Prior to long periods of storage, disconnect the battery from the system, connect the activation switch to the RS485 UP Communication Port of the battery, and long press the Power Button for 3 seconds to switch the battery to shelf mode.
- The normal operation of the self-heating function requires a stable charge current greater than 3A.
- Please secure all cable connections to the proper specification in order to ensure good contact between the cable lugs and the terminals. Over-tightening cable connections can cause terminal breakage and loose cable connections can cause terminal meltdown or fire.
- DO NOT string the battery in series. ONLY connect batteries of the same manufacturer and model in parallel.
- Please avoid too high a voltage difference between paralleled batteries, despite the auto-balancing function, to avoid triggering the over-current protection.
If you have any questions regarding this product, please call us at 1 (909) 287-7111 or submit a ticket for troubleshooting assistance.
